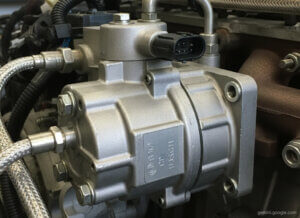

Насос Denso HP3
Система DENSO HP3 была представлена в 2001 году. ТНВД этой системы имеет новую конструкцию, которая состоит из приводного вала с эксцентриком, плавающей втулки и двух плунжеров, SCV клапана, датчика температуры топлива и подающего насоса с отношением вращения к двигателю как 1/1 или 1/2.
В отличие от систем НР2, в НР3 применяется новая конструкция клапана SCV линейного соленоидного типа который управляется сигналом скважности.
Каталожные номера насоса HP3:
294000-001*, 294000-004*, 294000-005*, 294000-006*, 294000-007*, 294000-010*, 294000-012*, 294000-016*, 294000-017*, 294000-019*, 294000-023* 294000-026* 294000-029*, 294000-030*, 294000-031*, 294000-032*, 294000-035*, 294000-036*, 294000-037*, 294000-038*, 294000-039*, 294000-0400, 294000-0402, 294000-041*, 294000-042*, 294000-043*, 294000-044*, 294000-047* 294000-049* 294000-0501, 294000-0502, 294000-051*, 294000-052*, 294000-053*, 294000-055*, 294000-056*, 294000-057*, 294000-059*, 294000-062*, 294000-069*, 294000-070*, 294000-071*, 294000-073*, 294000-075*, 294000-076*, 294000-084*, 294000-085*, 294000-086*, 294000-087*, 294000-088*, 294000-089*, 294000-090*, 294000-091*, 294000-092*, 294000-093*, 294000-094*, 294000-095*, 294000-098*, 294000-099*, 294000-100*, 294000-101*, 294000-102*, 294000-104*, 294000-108*, 294000-110*, 294000-119*, 294000-120*, 294000-121*, 294000-122*, 294000-128*, 294000-131*, 294000-132*, 294000-140*, 294000-141*, 294000-146*, 294000-152*, 294000-157*, 294000-158*, 294000-160*, 294000-172*, 294000-173* 294000-174*, HU294000-006*, HU294000-007*, HU294000-010*, HU294000-016*, HU294000-030*, HU294000-031*, HU294000-032*, HU294000-037*, HU294000-0400, HU294000-0402, HU294000-041*, HU294000-0501, HU294000-0502, HU294000-053*, HU294000-071*, HU294000-085*, HU294000-086*, HU294000-087*, HU294000-088*, HU294000-095*, HU294000-100*, HU294000-101*, HU294000-102*, HU294000-122*, HU294000-128*, HU294000-157*, HU294000-158*, HU294000-160*, SM294000-023*, SM294000-033*, SM294000-0333, SM294000-034*, SM294000-035*, SM294000-044*, SM294000-051*, SM294000-052*, SM294000-064*, SM294000-066*, SM294000-089*, SM294000-090*, SM294000-091*, SM294000-093*, SM294000-107*, SM294000-121*, SM294000-124*, SM294000-125*, SM294000-126*, SM294000-136*, SM294000-137*, SM294000-140*, SM294000-152*, 22100-27020, 22100-78180, 22100-78230, 22100-30021, 22100-30040, 22100-30050, 22100-30060, 22100-30070, 22100-30080, 22100-30090, 22100-30100, 22100-30110, 22100-30110-A, 22100-30120, 22100-30140, 22100-30150, 22100-30160, 22100-1261C, 22100-E0060, 22100-E0560, 22100-0G010, 22100-0G011, 22100-0L020, 22100-0L030, 22100-0L050, 22100-0L060, 22100-0L070, 22100-0L070-A, 22100-0R010, 22100-0R011, 22100-0R020, 22100-0R021, 22100-0R030, 22100-0R031, 22100-0R040, 22100-0R050, 22100-0R060, 22100-0R061, 22100-0R070, 3310045700, 3310048000, 33100-48000, RE507959, RE522595, RE527528, RE533507, RF5C13800, RF7J13800, R2AA13800, 1460A001, 1460A003, 1460A019, 1460A022, 1460A040, 1460A043, 1460A047, 1460A052, 1460A053, 1460A057, 1460A058, 1460A059, 16625AA010, 16625AA020, 16625AA030, 16700AW40*, 16700AW42*, 16700EC00*, 16700-EC00*, 16700EB30*, 16700-EB30*, 16700ES60*, 16700-LC10*, 16700-LC10#, 167005X00*, 16700-5X00*, 55567740CA, 5-5567740C-A, 1G410-50501, 1G421-50501, 1J500-50501, 1J520-50501, 1J574-50502, 6C1Q9B395AB, 6C1Q-9B395-AB, 6C1Q9B395AD, 6C1Q-9B395-AD, 6C1Q9B395BB, 6C1Q-9B395-BB, 6C1Q9B395BD, 6C1Q-9B395-BD, 8973060448, 8-97306044-8, 8-97311373-*, 8973113737, 8-97311373-7, 8973113739, 8-97311373-9, 897313862*, 8-97313862*, 8973288860, 8-97328886-0, 897376269*, 8-97376269*, 8973815552, 8-97381555-2, 8973865570, 8-97386557-0, 8973865574, 8-97386557-4, 8973815552, 8-97381555-2, 898092467*, 8-98092467*, 8-98151213-0, 898103028*, 8-98103028*, 8981559880, 8-98155988-0.
CITROEN
| Citroen Jumper PUMA 2.2L (HDi) 2006-; | Citroën Jumper PUMA (I4) 2.2L (HDI) 2006-; |
| Citroen Jumper PUMA 2.2L (HDi) 2007-; | Citroën Jumper PUMA (I4) 2.2L (HDI) 2007-. |
FIAT
| Fiat Ducato PUMA 2.2L (JTD) 2006-; | Fiat Ducato PUMA (I4) 2.2L (JTD) 2006-; |
| Fiat Ducato PUMA 2,2l (JTD) 2007-; | Fiat Ducato PUMA (I4) 2.2L (JTD) 2007-. |
FORD
| Ford Transit PUMA 2.2L (TDCi) 2006-; | Ford Transit PUMA (I4) 2.4L (TDCi) 2006-; |
| Ford Transit PUMA 2.2L (TDCi) 2007-; | Ford Transit PUMA (I4) 2.4L (TDCi) 2008-; |
| Ford Transit PUMA 2.4L (TDCi) 2006-; | Ford Transit PUMA (I4) 2.4L (TDCi) 2009-; |
| Ford Transit PUMA (I4) 2.2L (TDCi) 2006-; | Ford Transit PUMA (I5) 3.2L (TDCi) 2008-. |
| Ford Transit PUMA (I4) 2.2L (TDCi) 2007-; | |
HYUNDAI
| Hyundai County Euro3 2006-; | Hyundai Mighty Euro3 2006-; |
| Hyundai Mighty Euro3 2006-; | Hyundai Mighty 3.9 Euro4 2008-; |
| Hyundai County 3.9 Euro4 2008-; | |
ISUZU
| Isuzu Foward 4HK1 5.2L 2004 -; | Isuzu D-Max/Rodeo 4JJ1 3.0L Euro5 2009 -; |
| Isuzu Foward 4HK1 5.2L 2009 -; | Isuzu D-max / Rodeo 4JK1 2.5L 2007 -; |
| Isuzu D-max / Rodeo 4JJ1 3.0L 2007 -; | Isuzu D-Max/Rodeo 4JK1 2.5L 2009 -; |
| Isuzu D-Max/Rodeo 4JJ1 3.0L 2009 -; | Isuzu D-Max/Rodeo 4JK1 2.5L 2010 -; |
| Isuzu D-max / Rodeo 4JK1 Euro5 2011 -; | Isuzu N-Series 4JJ1 3.0L 2007 -; |
| Isuzu N-Series 4HK1 5.2L 2004 -; | Isuzu N-Series 4JJ1 3.0L 2010 -; |
JOHN DEERE
| John Deere Tractor 4045T S350 2005 -; | John Deere Tractor 6045 2002 -; |
| John Deere Tractor 4045T 6068T S350 Tier3 (4 cil.) 2005 -; | John Deere Tractor 6045 S350 Tier2 2002 -; |
| John Deere Tractor 4045T 6068T S350 Tier3 (4 cil.) 2007 -; | John Deere Tractor 6068T S350 2005 -; |
KUBOTA
| Kubota Construction Machine V6108 2011 — ; | Kubota V3800DI 2011 -; |
| Kubota Industrial A68T1 2008 — ; | Kubota V6108 2010 -; |
| Kubota V3800 2011 -; | |
LAND ROVER
| Land Rover Defender PUMA (I4) 2.4 TD 2007 -; | |
LEXUS
| Lexus IS200 2AD-FHV 110kW Euro5 2010 -; | Lexus IS220 2AD-FHV 130kW Euro4 2008 -; |
| Lexus IS200 2AD-FHV 110kW Euro5 2011 -; | Lexus IS220 2AD-FHV 130kW Euro4 2011 -; |
| Lexus IS220 2AD-FTV 130KW 2006 -; | Lexus IS220 2AD-FHV 130kW Euro5 2010 -; |
| Lexus IS220 2AD-FHV 2011 -; | Lexus IS220 2AD-FTV 130KW 2008 -; |
| Lexus IS220 2AD-FHV 130kW Euro4 2006 -; | |
MAZDA
| Mazda CX-7 R2 200MPa 2009 -; | Mazda 3 RF-DI 2005 -; |
| Mazda MPV RF-DI 2002 -; | Mazda 3 RF-DI 2008 -; |
| Mazda MPV RF-DI 2005 -; | Mazda 3 R2 200MPa 2009 -; |
| Mazda 5 RF-DI 2005 -; | Mazda 6 RF-DI 2009 -; |
| Mazda 5 RF-DI 2008 -; | Mazda 6 RF-DI 2005 -; |
| Mazda 6 RF-DI 2002 -; | Mazda 6 RF-DI 2008 –; |
| Mazda 6 RF-DI 2005-; | Mazda 6 R2 200MPa 2009 -; |
MITSUBISHI
| Mitsubishi ASX 4N13 Euro5 2010 -; | Mitsubishi Pajero Sport 4M41 Russia/Ukraine 2007 -; |
| Mitsubishi Lancer 4N13 Euro5 2010 -; | Mitsubishi Pajero Sport 4M41 Russia/Ukraine 2010 -; |
| Mitsubishi Outlander 4N14 Euro5 2010 -; | Mitsubishi Pajero Sport 4M41 Russia/Ukraine 2010 -; |
| Mitsubishi Pajero/Montero 4M41 Euro4 2006 — ; | Mitsubishi L200 4D56 Euro3 2007 -; |
| Mitsubishi Pajero/Montero 4M41 Euro3 2007 -; | Mitsubishi L200 4D56 Euro3 2010 -; |
| Mitsubishi Pajero/Montero 4M41 Euro3 2010 -; | Mitsubishi L200 4D56 Euro3 2010 -; |
| Mitsubishi Pajero/Montero 4M41 DI-DC High Power 2010 -; | Mitsubishi L200 4D56 DI-DC High Power 2009 -; |
| Mitsubishi Pajero Sport 4M41 R/U 2009 -; | Mitsubishi L200 4D56 DI-DC High Power 2010 -; |
| Mitsubishi Pajero Sport 4M41 R/U 2010 -; | |
NISSAN
| Nissan Almera (Tino) YD22 82kW 2003 -; | Nissan Pathfinder YD25 Euro4 2006 -; |
| Nissan Almera (Tino) YD22 82kW 2004 -; | Nissan Pathfinder YD25 Euro5 2010 -; |
| Nissan Almera (Tino) YD22 100kW 2003 -; | Nissan Primera YD22 82kW 2003 -; |
| Nissan Almera (Tino) YD22 100kW 2004 -; | Nissan Primera YD22 82kW 2004 -; |
| Nissan Navara YD25 Euro3 2005 -; | Nissan Primera YD22 100kW 2003 -; |
| Nissan Navara YD25 Euro4 2006 -; | Nissan Primera YD22 100kW 2004 -; |
| Nissan Cabstar YD25 Euro4 2006 -; | Nissan X-Trail YD22 2003 -; |
| Nissan Murano YD25 Euro5 2010 -; | Nissan X-Trail YD22 Euro3 2005 -; |
| Nissan Cabstar YD25 Euro5 2011 -; | Nissan X-Trail YD22 Euro4 2006 -; |
| Nissan Pathfinder YD25 Euro3 2005 -; | |
OPEL
| Opel Astra A17DT Euro5 2009 -; | Opel Corsa Z17DTR Euro4 2008 -; |
| Opel Astra A17DTR Euro5 2010 -; | Opel Combo Z17DTH 2003 -; |
| Opel Astra Z17DTJ Z17DTR Euro4 2007 -; | Opel Combo A17DTR Euro5 2010 -; |
| Opel Astra Z17DTJ — Z17DTR EURO4 2007 -; | Opel Meriva A17DT Euro5 2009 -; |
| Opel Astra Z17DTJ Z17DTR Euro4 2008 -; | Opel Meriva A17DT Euro5 2010 -; |
| Opel Astra Z17DTJ Z17DTR Euro4 2009 -; | Opel Meriva Z17DTH 2003 -; |
| Opel Corsa A17DT Euro5 2009 -; | Opel Meriva Z17DT Euro4 2007 -; |
| Opel Corsa A17DTR Euro5 2010 -; | Opel Meriva A17DT Euro5 2009 –; |
| Opel Corsa Z17DTH 2003 -; | Opel Meriva A17DT Euro5 2010 -; |
| Opel Corsa Z17DTR Euro4 2007 -; | |
PEUGEOT
| Peugeot Boxer PUMA 2.2L (HDi) 2006 -; | Peugeot Boxer PUMA 2.2L (HDi) 2007-; |
| Peugeot Boxer PUMA (I4) 2.2L (HDI) 2006 -; | Peugeot Boxer PUMA (I4) 2.2L (HDI) 2007-; |
SUBARU
| Subaru Forester EE20 2008 -; | Subaru Legacy EE20 2008 -; |
| Subaru Forester EE20 2010 -; | Subaru Legacy EE20 2010 -; |
| Subaru Impreza EE20 2008 -; | Subaru Outback EE20 2008 -; |
| Subaru Impreza EE20 2010 -; | Subaru Outback EE20 2010 -; |
TOYOTA
| Toyota Auris 1AD-FTV 81kW 2007 -; | Toyota Auris 1AD-FTV 90kW 2008 -; |
| Toyota Auris 1AD-FTV 81kW 2008 -; | Toyota Auris 1AD-FTV 90kW 2011 -; |
| Toyota Auris 1AD-FTV 81kW 2011 -; | Toyota Auris 1AD-FTV DPF (CCO) 2009 -; |
| Toyota Auris 1AD-FTV 81kW 2008 -; | Toyota Auris 2AD-FHV DPNR M130kW; |
| Toyota Auris 1AD-FTV 81kW 2011 -; | Toyota Auris 2AD-FHV 110KW; |
| Toyota Auris 1AD-FTV 90kW 2007 -; | Toyota Auris 2AD-FHV DPNR A110kW; |
| Toyota Auris 2AD-FHV 130KW; | Toyota Avensis 2AD-FHV 130kW 2011 -; |
| Toyota Auris 2AD-FHV DPNR M130kW; | Toyota Avensis 2AD-FHV DPNR M130kW 2009 -; |
| Toyota Auris 2AD-FHV 130kW 2007 -; | Toyota Avensis 2AD-FTV DPF 2009 -; |
| Toyota Auris 2AD-FHV 130kW 2008 –; | Toyota Coaster (Hino) N04C 2006 -; |
| Toyota Auris 2AD-FHV 130kW 2011 -; | Toyota Corolla 1AD-FTV 81kW 2006 -; |
| Toyota Avensis 1AD-FTV 81kW 2006 -; | Toyota Corolla 1AD-FTV 81kW 2008 -; |
| Toyota Avensis 1AD-FTV 81kW 2008 -; | Toyota Corolla 1AD-FTV 81kW 2011 -; |
| Toyota Avensis 1AD-FTV 81kW 2011 -; | Toyota Corolla 1AD-FTV 90kW 2006 -; |
| Toyota Avensis 1AD-FTV 90kW 2006 -; | Toyota Corolla 1AD-FTV 90kW 2006 -; |
| Toyota Avensis 1AD-FTV 90kW 2008 -; | Toyota Corolla 1AD-FTV 90kW 2008 -; |
| Toyota Avensis 1AD-FTV 90kW 2006 -; | Toyota Corolla 1AD-FTV 90kW 2011 -; |
| Toyota Avensis 1AD-FTV 90kW 2011 -; | Toyota Corolla 1AD-FTV DPF (CCO) 2009 -; |
| Toyota Avensis 1AD-FTV DPF 2009 -; | Toyota Corolla 1CD-FTV 2003 -; |
| Toyota Avensis 1AD-FTV DPF (CCO) 2009 -; | Toyota Corolla 1CD-FTV 2003 -; |
| Toyota Avensis 1CD-FTV 2003 -; | Toyota Corolla 1CD-FTV 2008 -; |
| Toyota Avensis 1CD-FTV 2005 -; | Toyota Corolla Verso 1AD-FTV 81kW 2006 -; |
| Toyota Avensis 1CD-FTV 2008 -; | Toyota Corolla Verso 1AD-FTV 81kW 2008 -; |
| Toyota Avensis Verso 1CD-FTV 2003 -; | Toyota Corolla Verso 1AD-FTV 81kW 2011 -; |
| Toyota Avensis Verso 1CD-FTV 2003 -; | Toyota Corolla Verso 1AD-FTV DPF (CCO) 2009 -; |
| Toyota Avensis Verso 1CD-FTV 2008 -; | Toyota Corolla Verso 1CD-FTV 2003 -; |
| Toyota Avensis 2AD-FTV 110kW 2005 -; | Toyota Corolla Verso 1CD-FTV 2008 -; |
| Toyota Avensis 2AD-FTV 110kW 2008 -; | Toyota Corolla 2AD-FHV 130kW 2006 -; |
| Toyota Avensis 2AD-FHV 110kW 2009 | Toyota Corolla 2AD-FHV 130kW 2008 -; |
| Toyota Avensis 2AD-FTV 110kW 2011 -; | Toyota Corolla 2AD-FHV 130kW 2011 -; |
| Toyota Avensis 2AD-FHV DPNR A110kW 2009 -; | Toyota Corolla Verso 2AD-FTV 2008 -; |
| Toyota Avensis 2AD-FHV 130kW 2005 -; | Toyota Corolla Verso 2AD-FHV DPF 2009 -; |
| Toyota Avensis 2AD-FHV 130kW 2008 -; | Toyota Hiace 2KD-FTV Euro4 2006 -; |
| Toyota Avensis 2AD-FHV 130kW 2009 -; | Toyota Hiace 2KD-FTV Euro4 2007 -; |
| Toyota Corolla Verso 2AD-FTV 100kW 2005 -; | Toyota Hiace 2KD-FTV Bajo lub, 2010 -; |
| Toyota Corolla Verso 2AD-FTV 100kW 2008 -; | Toyota Hiace 2KD-FTV Estándar 2010 -; |
| Toyota Corolla Verso 2AD-FTV 100kW 2011 -; | Toyota Hilux 1KD-FTV Euro4 2006 -; |
| Toyota Corolla Verso 2AD-FHV 130kW 2005 -; | Toyota Hilux 1KD-FTV Euro4 2007 -; |
| Toyota Corolla Verso 2AD-FHV 130kW 2008 -; | Toyota Hilux 1KD-FTV Euro4 2010 -; |
| Toyota Corolla Verso 2AD-FHV 130kW 2011 -; | Toyota Hilux 1KD-FTV Euro5 2011 -; |
| Toyota Dyna 1KD-FTV Euro4 2006 -; | Toyota Hilux 2KD-FTV 2001 -; |
| Toyota Dyna 1KD-FTV Euro4 2007 -; | Toyota Hilux 2KD-FTV 2004 -; |
| Toyota Dyna 1KD-FTV Euro5 2010 -; | Toyota Hilux 2KD-FTV 2005 -; |
| Toyota Dyna 1KD-FTV Euro5 2011 -; | Toyota Hilux 2KD-FTV 2006 -; |
| Toyota Dyna 2KD-FTV 2001 -; | Toyota Hilux 2KD-FTV 2007 -; |
| Toyota Dyna 2KD-FTV 2005 -; | Toyota Hilux 2KD-FTV 2008 -; |
| Toyota Dyna 2KD-FTV Bajo lub, 2010 -; | Toyota Hilux 2KD-FTV Euro4 2006-; |
| Toyota Dyna 2KD-FTV Estándar 2010 -; | Toyota Hilux 2KD-FTV Euro4 2007 -; |
| Toyota Dyna 200 (Hino) NO4C 2006 -; | Toyota Hilux 2KD-FTV Euro4 2010 -; |
| Toyota Dyna 200 (Hino) N04C Euro3 2006 -; | Toyota Hilux 2KD-FTV Euro5 2011 -; |
| Toyota Dyna 200 (Hino) N04C Euro4 2006 -; | Toyota Hilux 2KD-FTV Estándar 2010 -; |
| Toyota Dyna 200 (Hino) N04C Euro5 12V 2009 -; | Toyota Hilux 2KD-FTV Bajo lub, 2010 -; |
| Toyota Dyna 200 (Hino) N04C Euro5 24V 2009 -; | Toyota Land Cruiser 1KD-FTV Euro3 2004 -; |
| Toyota Hiace 1KD-FTV Euro4 2010 -; | Toyota Land Cruiser 1KD-FTV Euro4 2006 -; |
| Toyota Hiace 1KD-FTV Euro5 2010 -; | Toyota Land Cruiser 1KD-FTV Euro4 2007 -; |
| Toyota Land Cruiser 1KD-FTV Euro5 2010 -; | Toyota Land Cruiser 1KD-FTV Euro4 2010 -; |
| Toyota RAV4 1AD-FTV 81kW 2006 -; | Toyota RAV4 2AD-FTV 100kW 2005 -; |
| Toyota RAV4 1AD-FTV 81kW 2008 -; | Toyota RAV4 2AD-FHV 130kW 2005 -; |
| Toyota RAV4 1AD-FTV 81kW 2011 -; | Toyota RAV4 2AD-FHV 130kW 2008 -; |
| Toyota RAV4 2AD-FTV 2008 -; | Toyota RAV4 2AD-FHV 130kW 2011 -; |
| Toyota RAV4 2AD-FTV 2011 -; | Toyota 4Runner 2KD-FTV 2001 -; |
| Toyota RAV4 2AD-FHV DPNR 2009 -; | Toyota 4Runner 2KD-FTV 2005 -; |
| Toyota RAV4 2AD-FTV DPF (CCO) 2009 -; | |
